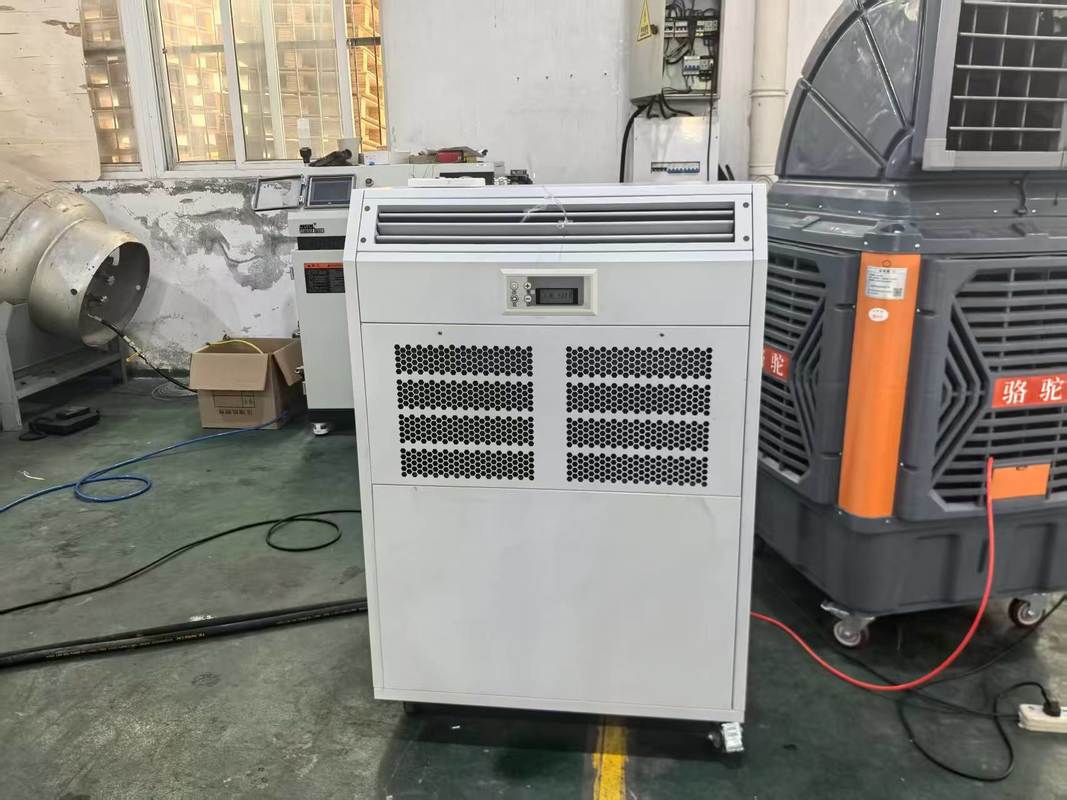

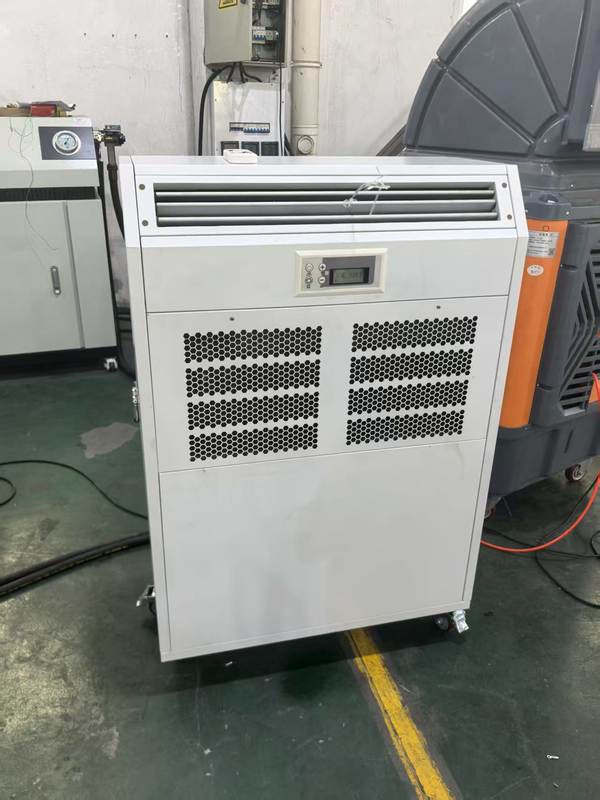

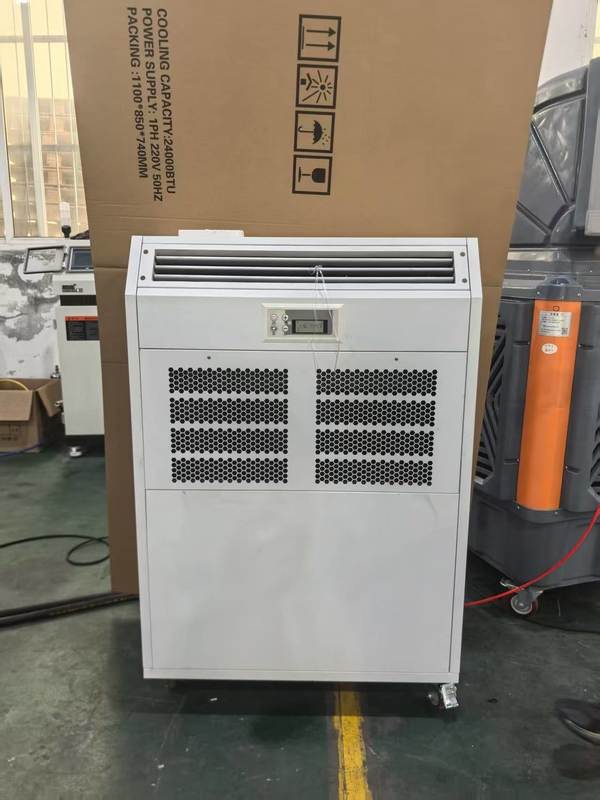

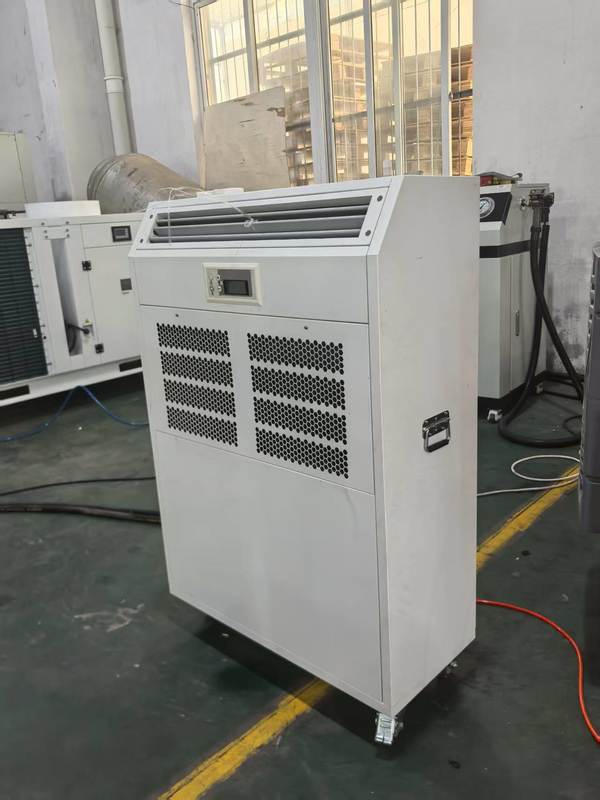

7KW Water Cooled Split AC Unit 24000 BTU Ductless Cooling

WXWSCT-7 Water Cooled Split Unit: Ductless 7KW Portable Cooling  24,000 BTU

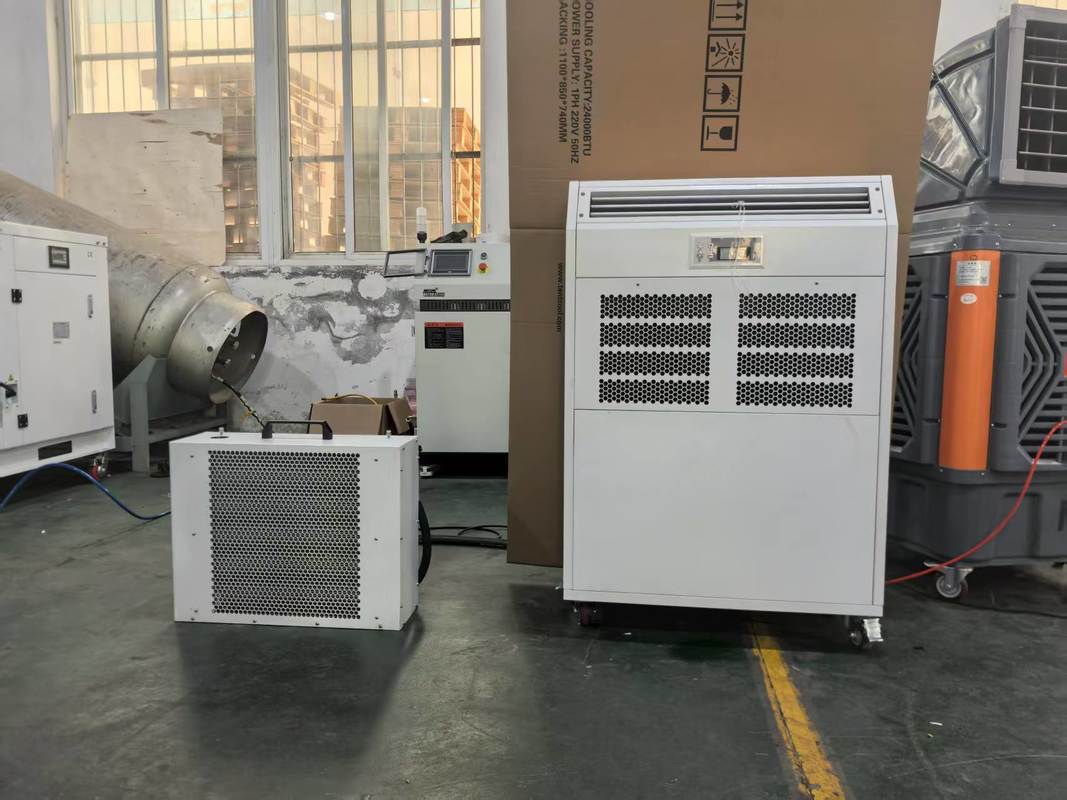

How This Water Cooled Split Unit Works:
The core innovation lies in its split design. The indoor unit absorbs heat directly into a refrigerant circuit. This heat is then efficiently transferred to a self-contained chilled water/glycol solution circulating within the unit. This cooled water/glycol mixture is pumped via two insulated, quick-connect, self-sealing 22mm flexible hoses (available in 5m or 15m, max 20m combined) to the separate outdoor unit. Here, the heat is dissipated into the outside air, and the cooled water/glycol is cycled back to the indoor unit. This closed-loop process means no indoor air is exhausted, preserving air quality, humidity levels, and energy efficiency.

Key Features & Advantages:

1. True Ductless Installation: The Water Cooled Split Unit design eliminates the need for exhaust ducts vented through walls or windows. Setup is remarkably simple: just connect the hoses between the indoor and outdoor units and plug in.

2. Whole-Room Cooling Power: Delivers a substantial 7KW (24,000 BTU) cooling capacity, effectively managing temperatures in significant spaces.

3. Energy Efficient Operation: By recirculating indoor air instead of exhausting it, the unit avoids the energy penalty of constantly cooling and replacing lost air, leading to lower operating costs.

4. Flexible Placement: The long hose connection (up to 20m) provides exceptional flexibility in locating the outdoor unit (within 0°C to 45°C ambient range), away from noise-sensitive areas or where exhaust isn't feasible.

5. Dual Cooling Modes: Choose between:

   • 'Recirculation' Mode: For continuous air circulation and filtration.

   • 'Air-Conditioning' Mode: Engages the electronic thermostat for precise temperature control between 8°C and 35°C.

6. Intuitive Control Panel: Features an LCD display showing actual/set temperatures, modes, status, and alarms. Easily adjust settings directly on the panel.

7. Adjustable Comfort: The fan speed control dial offers stepless adjustment (Low: 1000 m³/h, Mid: 1200 m³/h, High: 1500 m³/h) for optimal airflow and noise levels.

8. Reliable Performance: Equipped with a GMCC PA290G2CS-4MU1 compressor and uses efficient R32/R410A refrigerant.


Technical Specifications: WXWSCT-7 Water Cooled Split Unit





Frequently Asked Questions (FAQ):

• Q: How is this different from a regular portable air conditioner?
  A: Traditional portable ACs exhaust hot air outside through a duct, requiring a window or wall vent. This Water Cooled Split Unit transfers heat via water/glycol through hoses to a separate outdoor unit, so no indoor air is lost, making it far more efficient and easier to install.

• Q: Do I need to install ductwork?
  A: No! That's the key advantage. You only need to run the two flexible water hoses (up to 20m total) between the indoor and outdoor units. No exhaust air ducts are required.

• Q: What are the maximum hose lengths?
  A: Hoses are supplied as 5m or 15m lengths. The maximum combined length you can use is 20 meters.

• Q: What temperature range can it cool to?
  A: In 'Air-Conditioning' mode, the thermostat allows you to set a cooling point anywhere between 8°C and 35°C.

• Q: How noisy is it?
  A: The indoor unit operates at 49 dB(A) (comparable to a quiet conversation), while the outdoor unit is 67 dB(A) (similar to a dishwasher). Placing the outdoor unit further away minimizes indoor noise.

• Q: Where is this unit best suited?
  A: Ideal for spaces lacking traditional HVAC or where ducting is impossible: server/IT rooms, commercial kitchens (supplemental), workshops, temporary offices, event spaces, medical rooms, or any room needing powerful, ductless cooling.
